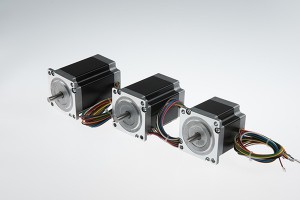

NEMA 23 Lead wire Stepping Motor(76mm 2.0N.m)

Short Description:

Prostepper offers an extensive range of sizes and configurations from 20 to 110mm and holding torque from 0.1 to 12 N.m routine stepping motors.
Features :

Single or Double shaft extension options
Connector and Options of wire harness
Spur and Planetary gears mounting options
Fail safe Brake or Permanent Magnet Brake mounting options
Fully customizable per your requirements

FOB Price: US $9.9 - 99.99 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 20000 Piece/Pieces per Month

Port: Shanghai, China

Payment Terms: T/T, L/C

Send email to us Download as PDF

Product Detail

Product Tags

Model	Current	Holding torque	Length	Specification	3D show
23H242-01S/D	1.0	0.6	42.5
23H242-02S/D	2.0	0.6	42.5
23H242-03S/D	3.0	0.6	42.5
23H245-01S/D	1.0	0.8	45.5
23H245-02S/D	2.0	0.8	45.5
23H245-03S/D	3.0	0.8	45.5
23H251-01S/D	1.0	1.0	51.5
23H251-02S/D	2.0	1.0	51.5
23H251-03S/D	3.0	1.0	51.5
23H255-01S/D	1.0	1.2	55.5
23H255-02S/D	2.0	1.2	55.5
23H255-03S/D	3.0	1.2	55.5
23H265-02S/D	2.0	1.7	64.5
23H265-03S/D	3.0	1.7	64.5
23H265-04S/D	4.0	1.7	64.5
23H276-02S/D	2.0	2	76.5
23H276-03S/D	3.0	2	76.5
23H276-04S/D	4.0	2	76.5
23H280-03S/D	3.0	2.2	80.1
23H280-04S/D	4.0	2.2	80.1
23H280-05S/D	5.0	2.2	80.1
23H2100-03S/D	3.0	2.7	101.0
23H2100-04S/D	4.0	2.7	101.0
23H2100-05S/D	5.0	2.7	101.0
