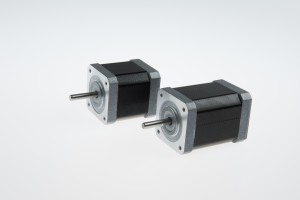

NEMA 17 Stepping Motor(61mm 0.72N.m)

NEMA 17 Stepping Motor(61mm 0.72N.m) Featured Image
  • NEMA 17 Stepping Motor(61mm 0.72N.m)
  • NEMA 17 Stepping Motor(61mm 0.72N.m)

Short Description:

Nema 17(42mm), 23(57mm) available, step angle of 0.9degree.
Features :

  • Single or Double shaft extension options
  • Connector and Options of wire harness
  • Spur and Planetary gears mounting options
  • Fail safe Brake or Permanent Magnet Brake mounting options
  • Fully customizable per your requirements


  • FOB Price: US $9.9 - 99.99 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 20000 Piece/Pieces per Month
  • Port: Shanghai, China
  • Payment Terms: T/T, L/C
    • Download as PDF

    Product Detail

    Product Tags

    Model Current Holding torque Length Specification 3D show
    17H231-01S/D 0.6 0.16 30.1
    17H231-02S/D 1.2 0.16 30.1
    17H235-01S/D 0.6 0.25 34.1
    17H235-02S/D 1.2 0.25 34.1
    17H241-01S/D 0.6 0.4 40.1
    17H241-02S/D 1.2 0.4 40.1
    17H249-01S/D 0.6 0.48 48.1
    17H249-02S/D 1.2 0.48 48.1
    17H249-03S/D 1.8 0.48 48.1
    17H261-01S/D 0.6 0.72 60.1
    17H261-02S/D 1.2 0.72 60.1
    17H261-03S/D 1.8 0.72 60.1
